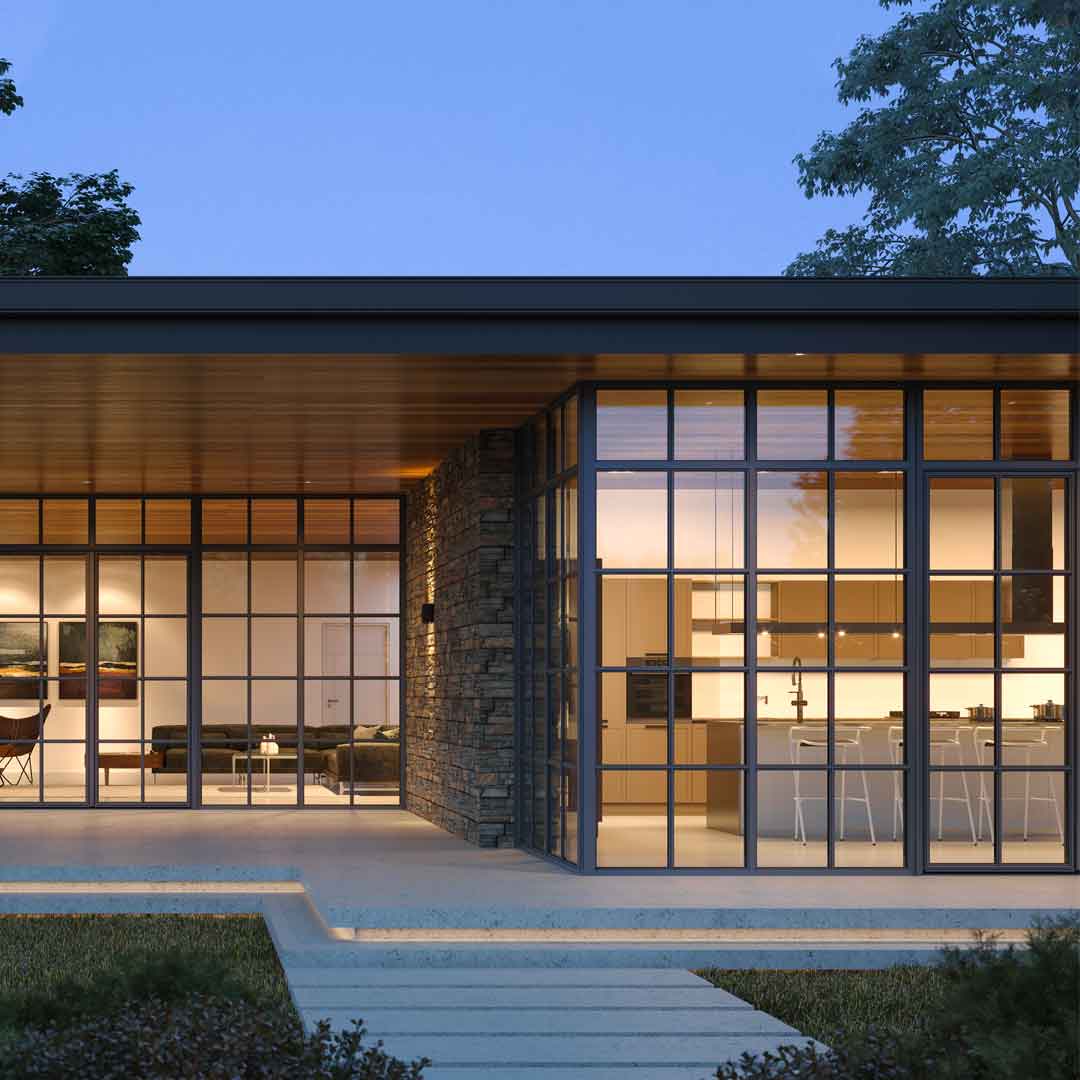

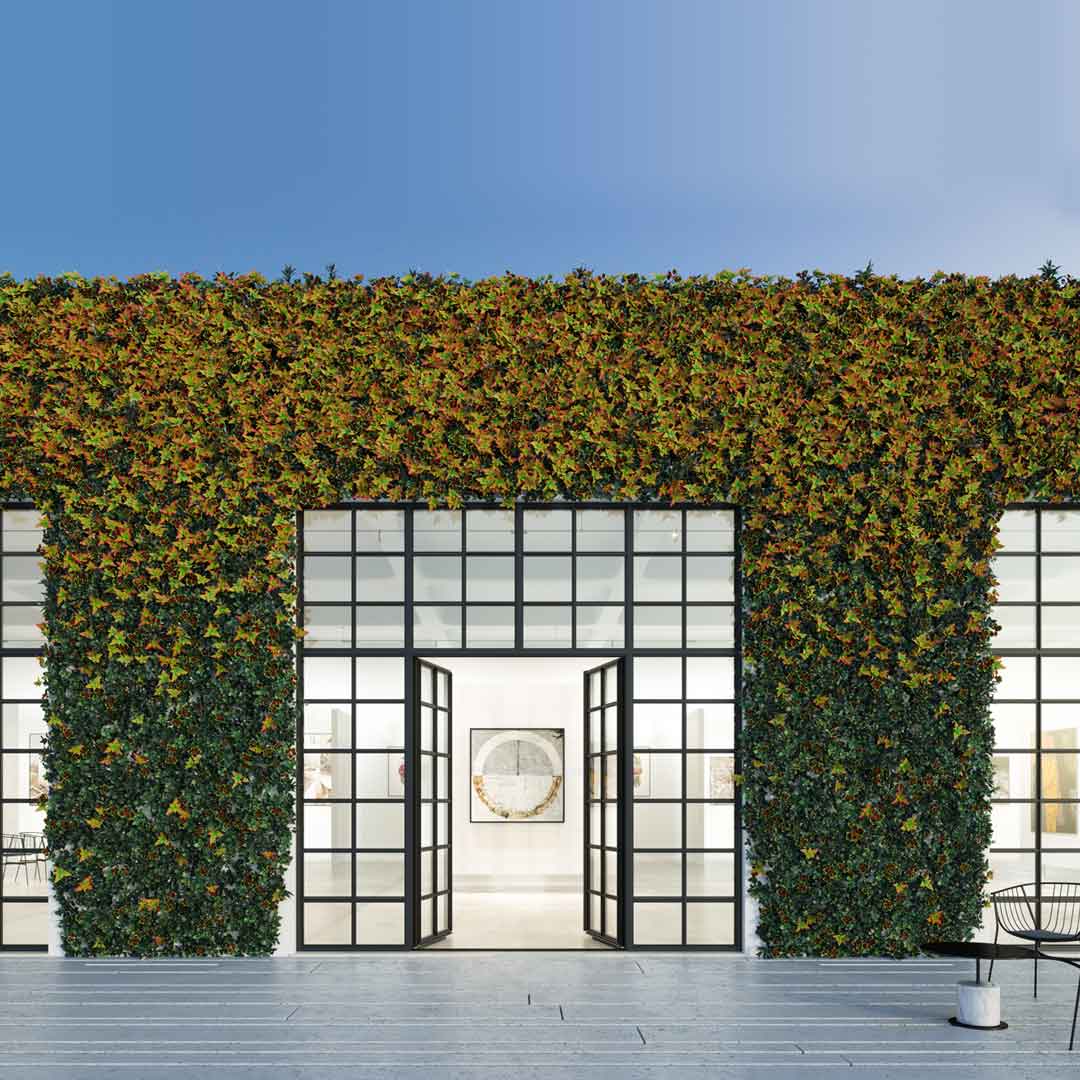

The W85ST is a SKYLINE highly insulated hinged system, which imitates the style of traditional steel windows, adding the value of superior thermal efficiency and turning the window of a house or a terrace (patio) into a New York Loft.

Benefits:

• Elegant retro-look design
• Perfectly match the latest trend in industrial architecture
• Maximal user comfort due to increased thermal properties
• Impressive water and air tightness
• Concealed fittings are possible
• Suitable for both double and triple glazing
• Easy access low threshold fulfills international requirements
• Ideally suited for refurbishing old steel windows

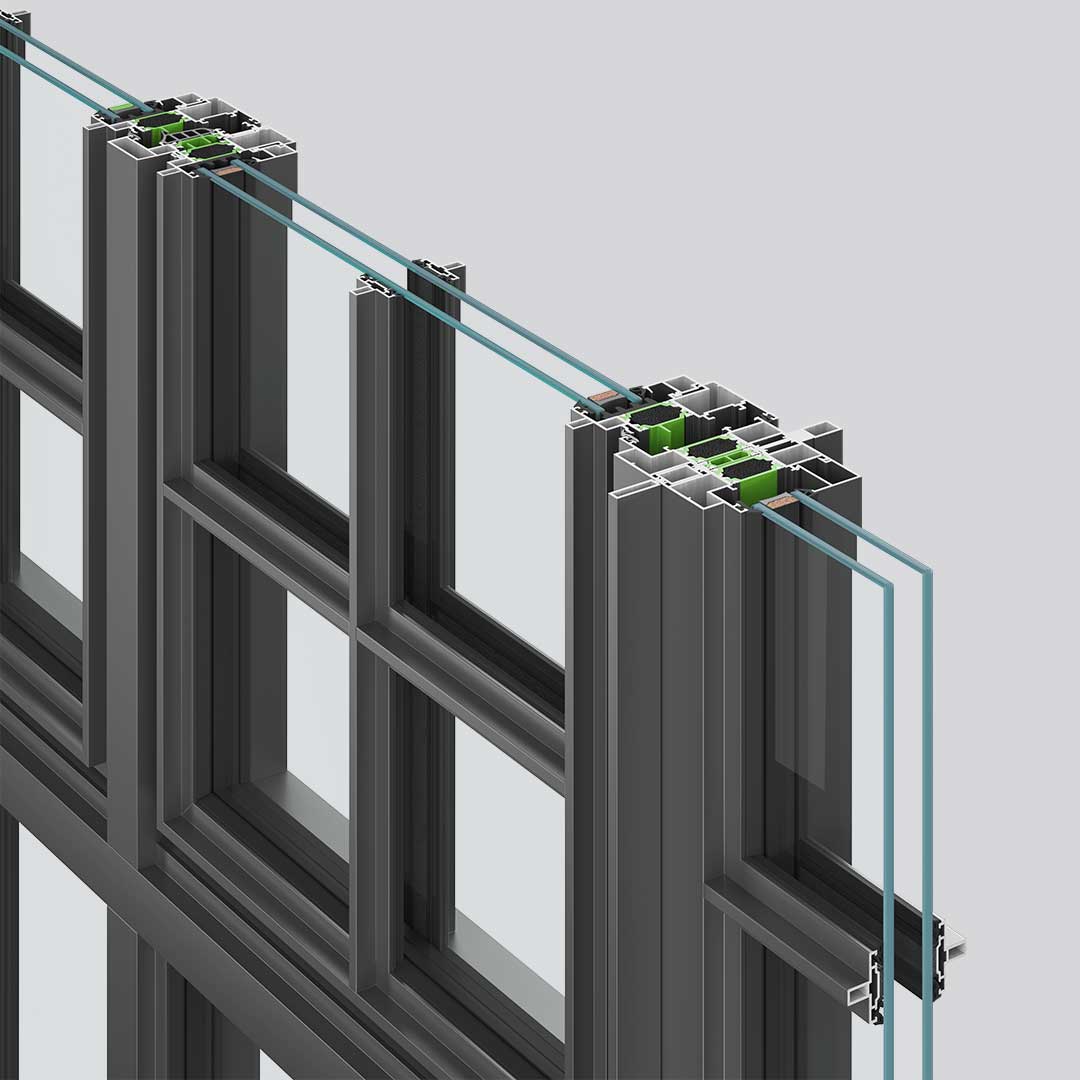

Technical Data:

Exterior aesthetics: Flat / Slender Retro look

Frame depth: 87.5 mm

Sash Depth: 87.5 mm

Minimum visible aluminium face height (frame – sash): 75 mm

Minimum visible aluminium face width (adjoining): 116.5 mm

Minimum threshold height: 14.7 mm

Maximum sash width: 1200 mm

Maximum sash height: 2400 mm

Maximum sash weight: 150 Kg

Hardware: Visible / Concealed hinges 180°

Sealing method: Perimetrical, 3-level with EPDM gaskets

Glass type: Double/Triple

Glass thicknesses: from 23.5 mm up to 54 mm

Type of thermal insulation: Polyamides 30 mm, Insulation Foam

Configurations: Opening, Tilt and turn, Fixed



Performances:

Thermal: Uf values from 1.4 W⁄(m²K)

Air Permeability: Class 4

Water tightness: Class 9A

Wind load Resistance: Class C2/B2

Acoustic: 43 dB
